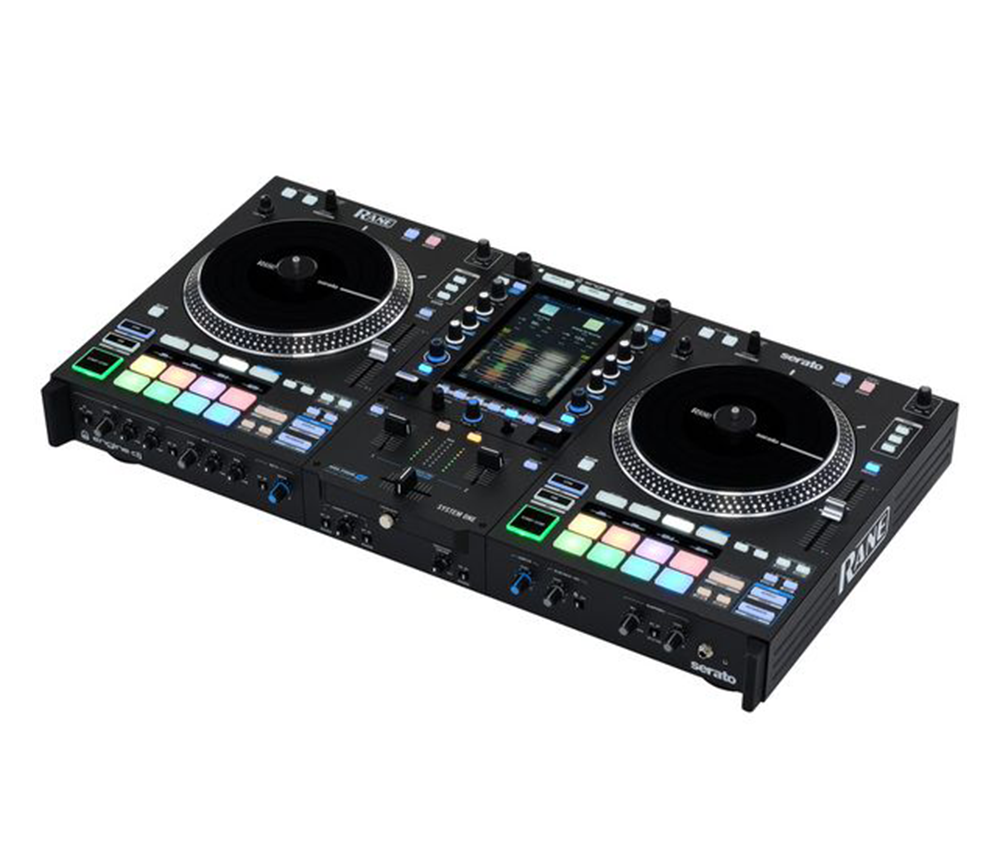

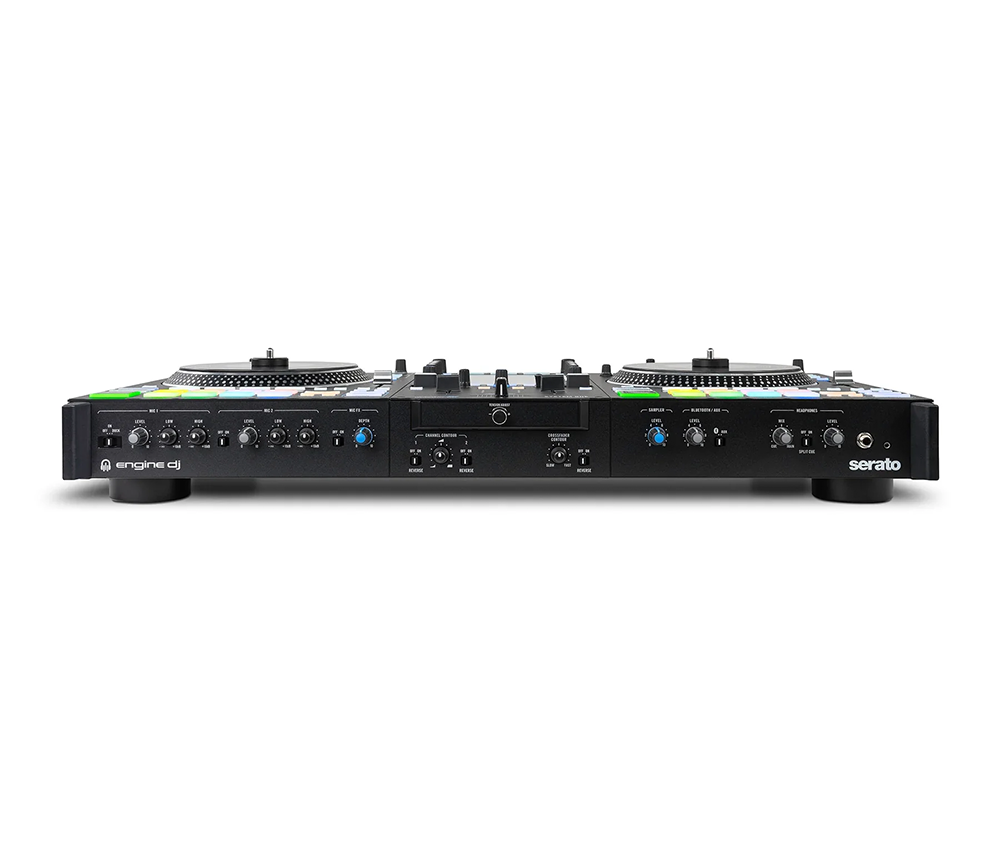

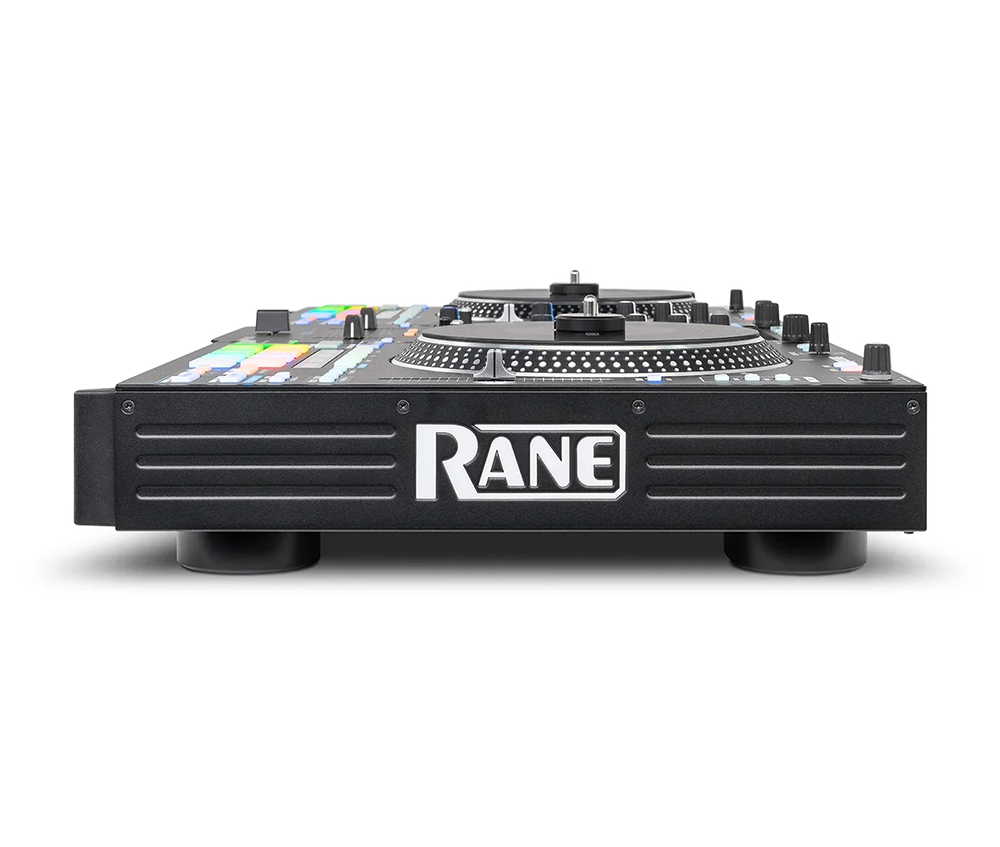

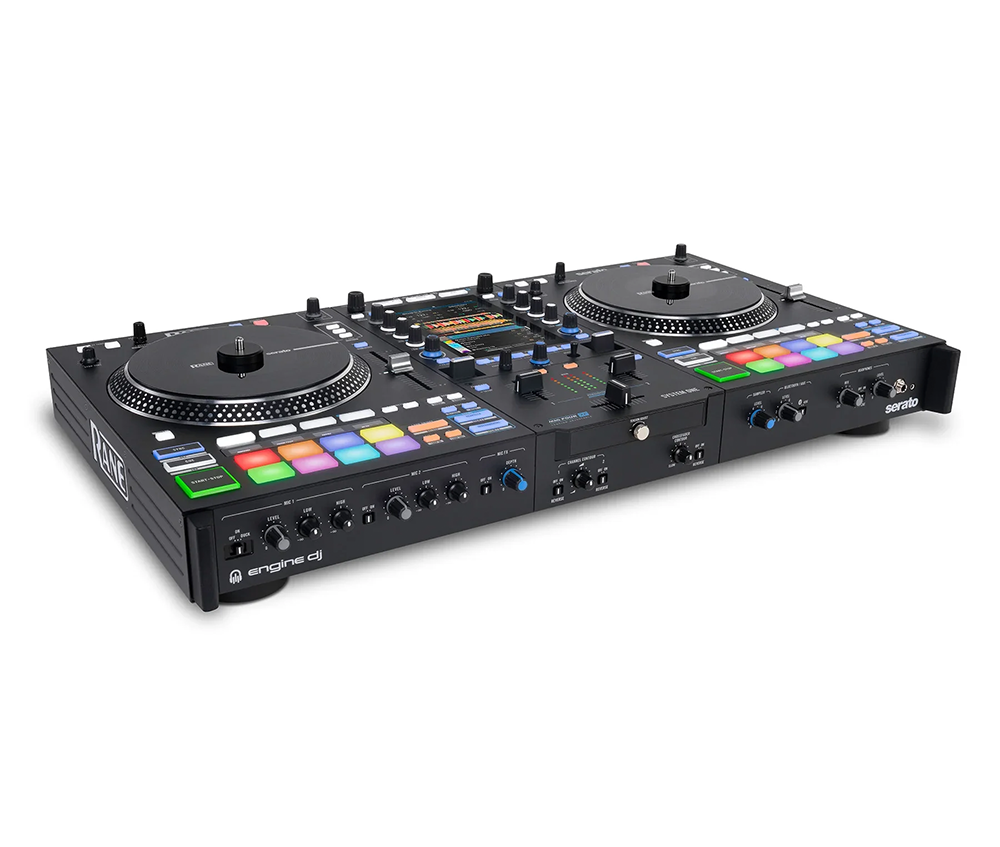

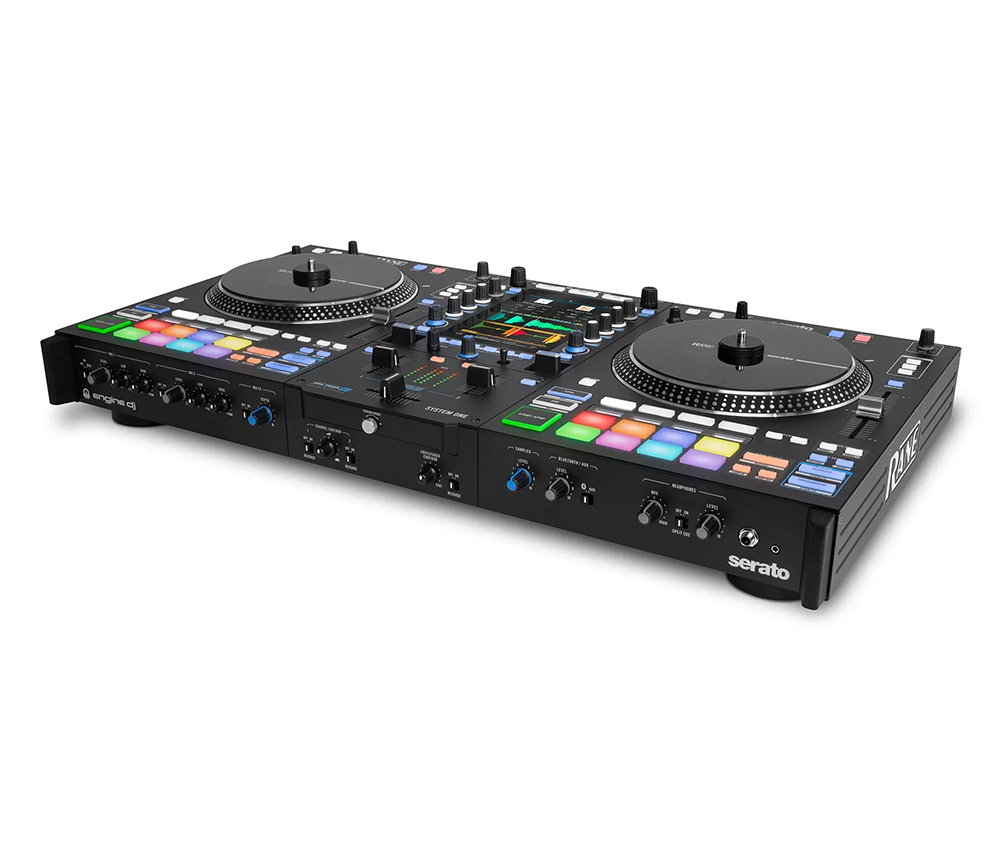

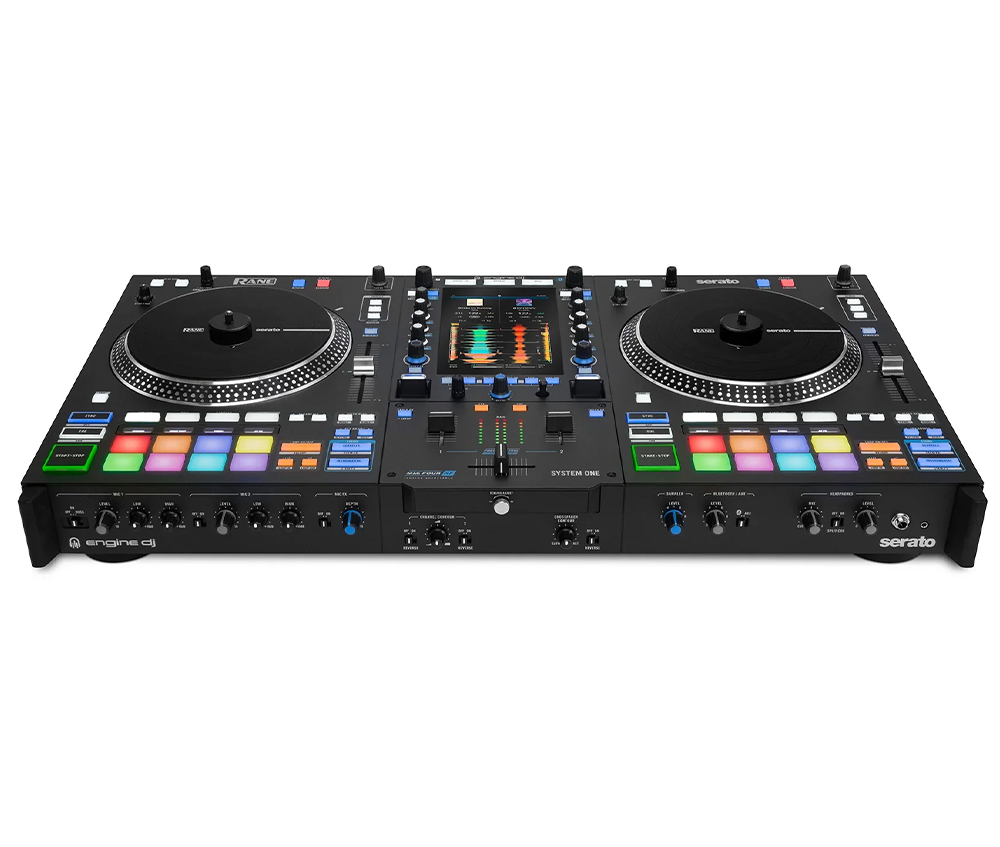

Rane System One

Specs

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
• Digital Signal Processing: 32-bit, Floating Point, Double Precision
• Main Output (XLR, RCA stereo pair):

o DAC: 24-bit
o Dynamic Range: 117 dB
o Output Type: Balanced XLR
o Max Output Level (XLR): 8 Vrms
o Max Output Level (RCA): 4 Vrms
o Frequency Response: 20 Hz–20 kHz: +0, -1 dB
o THD+N: 0.002% @ 1 kHz, 4 Vrms
o Channel Separation: > 80 dB
o Input Gain Trim Range: Off to +12 dB
o Output Level Range: Off to 0 dB

• Booth Output (1/4” [6.35 mm] TRS):

o DAC: 24-bit
o Dynamic Range: 117 dB
o Output Type: Balanced TRS
o Max Output Level: 8 Vrms
o Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
o THD+N: 0.002% @ 1 kHz, 4 Vrms
o Channel Separation: > 80 dB
o Input Gain Trim Range: Off to +12 dB
o Output Level Range: Off to 0 dB

• Headphone Output (1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)

o DAC: 24-bit
o Dynamic Range: 117 dB
o Output Type: Stereo TRS (1/8” and 1/4” jacks)
o Cue Features: Cue / Split Cue
o Max Output Level (No Load): 4 Vrms
o Max Power Output @ 50 Ω: 150 mW
o Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
o THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
o THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%
o Channel Separation: > 80 dB
o Level Control Range: Off to 0 dB

• Inputs (Combo XLR/1/4” [6.35 mm] TRS)

o ADC: 24-bit, 115 dB DR
o Input Type: Balanced XLR/TRS combo
o Max Input Level: 110 mV
o Analog Gain: 25 dB
o Max System Gain: 60 dB
o Frequency Response @ 20 Hz: -2.5 dB
o Frequency Response @ 20 kHz: -5 dB
o THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)
o DR (A-weighted), Gain = 25 dB: 102 dB
o DR (A-weighted), Gain = 60 dB: 72 dB
o IRN (A-weighted), Gain = 60 dB: -132 dB
o IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB

• Auxiliary Input (RCA stereo pair)

o ADC: 24-bit, 115 dB DR (A-weighted)
o Input Type: Unbalanced RCA
o Max Input Level: 4 Vrms
o Frequency Response: 20 Hz –20 kHz: +0, -1 dB
o THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz)
o Gain Range: Off to +12 dB
o DR (A-weighted), Unity Gain: 108 dB
o Crosstalk: ≤ -90 dB

• Performance Pads

o Pads: 16 total, on/off multi-color back-lit (8 per deck)

• Faders

o Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
o Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse

• Displays

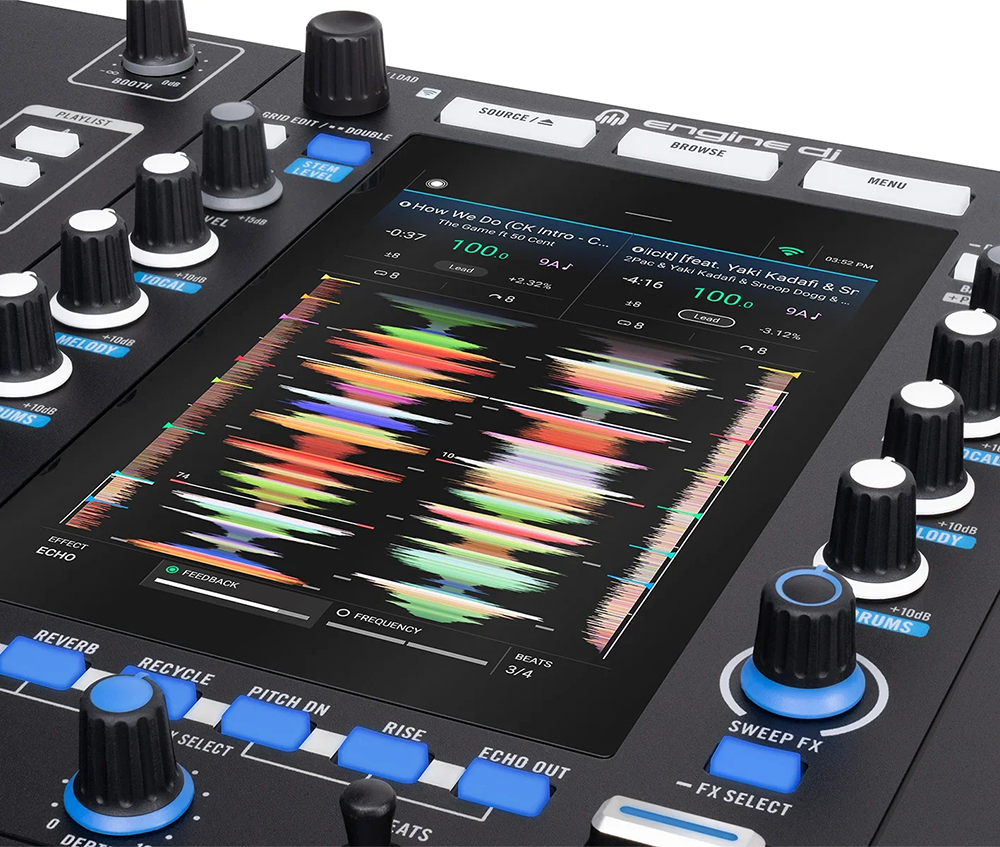

o Main Display: 7″/178 mm (diagonal) full-color LED-backlit display with touch interface
o Pad Displays: (8) 128 x 32 monochrome OLEDs

• CPU

o Processor: 8-Core ARM Processor CPU
o RAM: 4 GB

• Wi-Fi & Bluetooth

o Wi-Fi: 2.4GHz/5GHz / 802.11a/b/g/n/ac / Wi-Fi 5
o Bluetooth: v5.4

• Supported Media

o File Systems: exFAT (recommended) / FAT32
o Playable Formats: AAC/M4A / AIF/AIFF (44.1–192 kHz, 16–32-bit) / ALAC / FLAC / MP3 (32–320 kbps) / MP4 / Ogg Vorbis / WAV (44.1–192 kHz, 16–32-bit)

• Streaming Services

o Onboard Streaming Services (subscription required): Amazon Music Unlimited / Apple Music / Beatport / Beatsource / SoundCloud Go+ / TIDAL

• Lighting

o Onboard Smart Lighting: Philips Hue / Nanoleaf

• Supported DMX: SoundSwitch DMX Micro / SoundSwitch Control One
• Power Consumption: 150 W

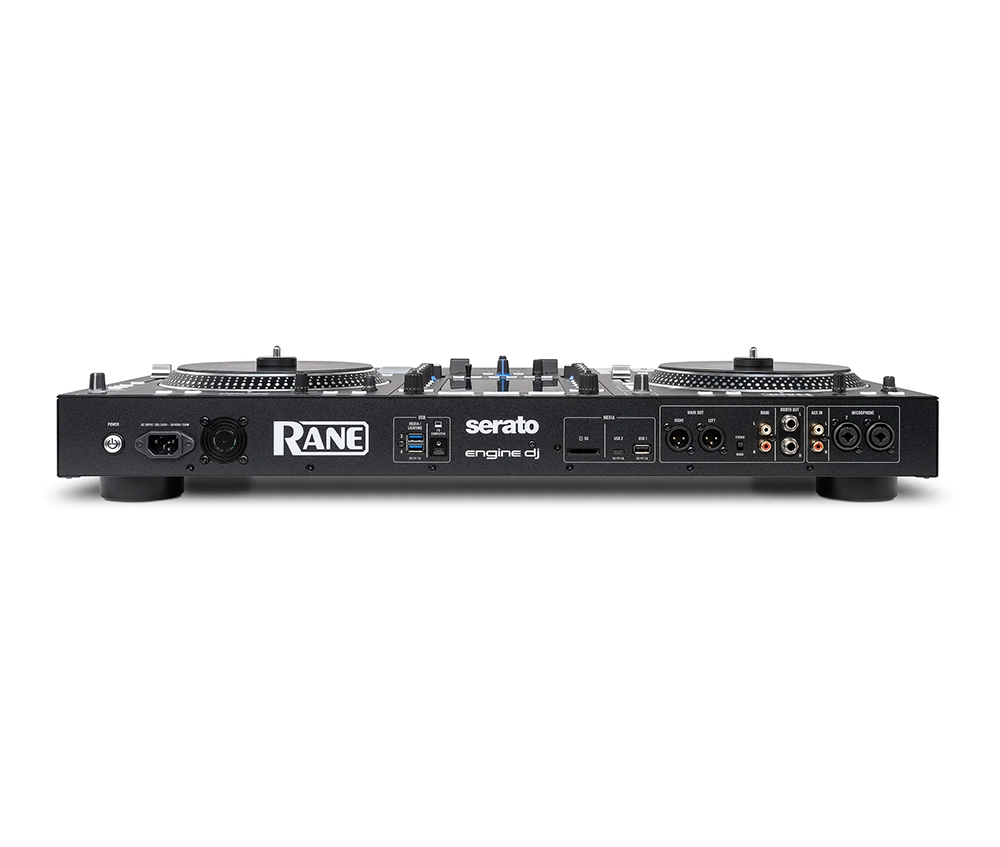

Inputs / Outputs

• Mic 1: XLR + 1/4” Combo Jack
• Mic 2: XLR + 1/4” Combo Jack
• Aux: Stereo Pair (RCA)
• Main: (2) XLR, Stereo Pair (RCA)
• Booth: (2) 1/4” TRS Jacks
• Headphones: 1/4” Stereo Jack & 3.5-mm Stereo Mini-Jack
• Media Inputs
  o USB 1: Type-A, USB 2.0 High Speed
  o USB 2: Type-C, USB 3.0 SuperSpeed
  o USB 3: Type-A, USB 3.0 SuperSpeed
  o USB 4: Type-A, USB 3.0 SuperSpeed
  o USB to Computer: Type-C, USB 3.0 SuperSpeed
  o SD Media: SD, SDHC, SDXC
  o Internal HD: SATA 3.0
• Power: Locking IEC
