Allen & Heath XONE:92A – Limited Edition
RM8,888.00
Allen & Heath XONE:92A – Limited Edition
RM8,888.00
The Iconic Mixer for Electronic Music DJs:
- Limited to 920 units. Includes a unique 12” fine art print from The Worxlab and matching “dog tag” key fob, both emblazoned with the mixer’s serial number
- 100% analogue circuitry and mix bus summing
- 4 Phono/Line Channels + 2 Mic/Line Channels
- Optimized RIAA preamps for vinyl DJs
- Precision 4-band EQ control
- Dual analogue Filters with silent-switching
- Refined Xone:VCF Filters for enhanced control
- Custom innoFADER® for maximum responsiveness
,
Features
The industry standard for serious electronic music DJs around the world
The Allen & Heath Xone:92A – Limited Edition is an improved version of the world acclaimed versatile six channel analogue mixer, renowned for its expansive, involving sound. The Xone:92 is built like a rock and features one of the best EQ sections ever as well as the innovative dual VCF filters. This limited edition is dedicated to collectors and boast improved phono preamps, silent-switching filters, refined VCF filters and a custom innoFADER. Lastly, it comes with a retro-styled silver top panel recalling the much-loved colourway from the early 2000s.
- Limited to 920 units. Includes a unique 12” fine art print from The Worxlab and matching “dog tag” key fob, both emblazoned with the mixer’s serial number
- 100% analogue circuitry and mix bus summing
- 4 Phono/Line Channels + 2 Mic/Line Channels
- Optimized RIAA preamps for vinyl DJs
- Precision 4-band EQ control
- Dual analogue Filters with silent-switching
- Refined Xone:VCF Filters for enhanced control
- Custom innoFADER® for maximum responsiveness
,
What’s in the Box?
- Allen & Heath XONE:92
- Power Adaptor
- Spare Knobs & Caps

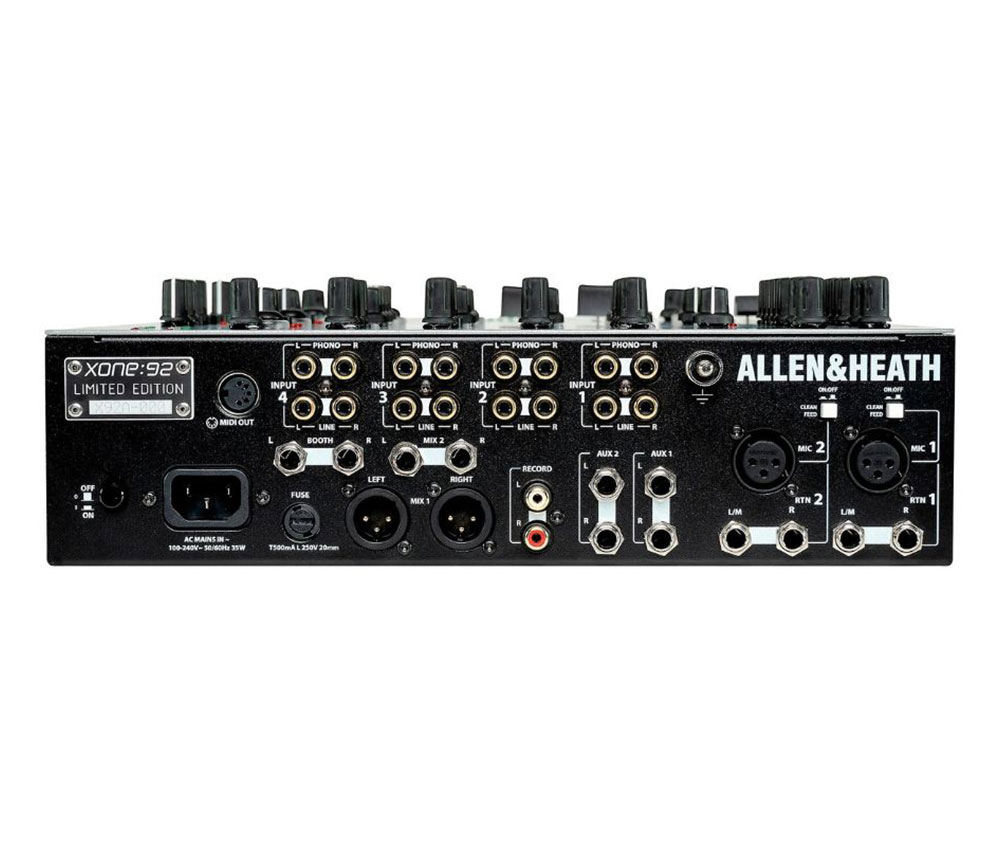

Inputs
- 4x Phono | Line (Gold Plated RCA)
- 2x MIC (XLR)
- 2x RETURN (TRS)
Outputs
- 2x MASTER (2x XLR / 2x TRS)
- 1x BOOTH (TRS)
- 1x HEADPHONE MONITOR (1/4 inch Jack)
- 1x REC (Gold Plated RCA)
- 1x MIDI OUT (5-PIN DIN)
Specs
- Max output level: MIX 1 +22dBu into 47 ohms, MIX 2 +20dBu into 47 ohms, AUX +21dBu into 47 ohms, REC +11dBV into 600 ohm
- Internal headroom: Channels +22dB
- Freq response: +/-0.5dB 5Hz to 30kHz
- Distortion: < 0.003% THD+noise @1kHz
- Crosstalk: > -93dB Inter-channel
- MIC IN 22-22kHz: -126dB 150-ohm source
- Residual noise: MIX 1 -99dBu, MIX 2 -106dBu, AUX -90dBu, BOOTH -106dBu, REC -96dBu
- Mix noise: MIX 1 -88dBu (-90dB S/N), MIX 2 -90dBu (-88dB S/N), AUX -88dBu (-86dB S/N), BOOTH -89dBu (-87dB S/N), REC -96dBu
- Channel meters: Peak reading 9 led, -20 to +10
- Main meters: Peak reading 9 led, -20 to +10
- Mic EQ: 4-Band +/-15dB, 100, 250, 2.5k, 10kHz
- Music EQ: 4-Band +6dB / -30 (Mids), Infinity (12dB/Oct) LF/HF, 250,350, 2k, 2.5K
- Ch fader: 60mm stereo or rotary VCA
- Mix 1 & 2 faders: Rotary
- Crossfader: 45mm stereo VCA, Replaceable
- Filters: Dual stereo VCF, Analogue
Videos
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 52 × 50 × 22 cm |
